Oil-free compression rotary screw compressors with integrated compressed air dryer


i.HOC – Outstandingly efficient compressed air drying

The patented i.HOC rotary dryer from Kaeser uses up to 100 % of compressor heat! Thanks to full-flow regeneration, it delivers reliable pressure dew points up to an ambient temperature of 45 °C – completely without electrical heating or additional cooling of the regeneration air!

  • Installed in air-cooled or water-cooled units
  • Unit rated power from 37 kW to 355 kW
  • Unit flow rates from 4.2 m³/min to 51 m³/min
  • Integrated SIGMA CONTROL 2 compressor controller (SFC model versions)

Your advantages

  • Sub-zero pressure dew points even in high ambient temperatures:
    Thanks to its extraordinary regeneration potential, the i.HOC delivers below-zero pressure dew points even with high cooling medium temperatures.
  • Pressure dew point stability even with variable flow rates:
    The pressure dew point remains stable even with low compressor load – no partial-load compensation required.
  • Effective drying AND heat recovery:
    i.HOC uses the heat exchangers of the second compression stage, which have been optimised for heat recovery, as regeneration air coolers.

Benefits of full-flow regeneration

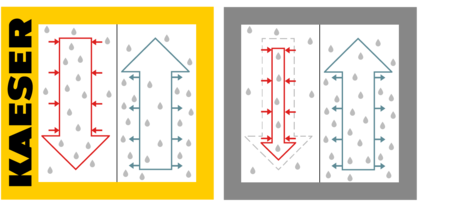

i.HOC with KAESER full-flow regeneration
□ Full-flow regeneration □ Partial-flow regeneration
↓ Regeneration area: Hot air removes moisture from the desiccant.
↑ Drying area: Moisture is drawn into the desiccant from the cold air.

The i.HOC (Integrated Heat of Compression Dryer) uses 100 % of the heat of compression from the second compressor stage for drying purposes (full-flow regeneration). This heat, which is produced in any case, is therefore effectively available at zero cost.

  • No additional energy input for the drying process
  • Higher regeneration potential than dryers with partial-flow regeneration
  • Full performance, even at low compressor load

The advantages of full-flow regeneration become particularly evident at increased cooling medium temperatures. KAESER rotation dryers achieve outstanding drying results, even without additional electrical heating of the regeneration air.



The oil-free compression rotary screw compressors with integrated i.HOC or refrigeration dryer in detail

Integrated refrigeration dryer

Energy-saving drying

Integrated design, together with the generously-dimensioned aluminium block heat exchanger, helps ensure minimal pressure loss of less than 0.1 bar. The energy-saving scroll refrigerant compressor helps to achieve additional compressed air energy savings.

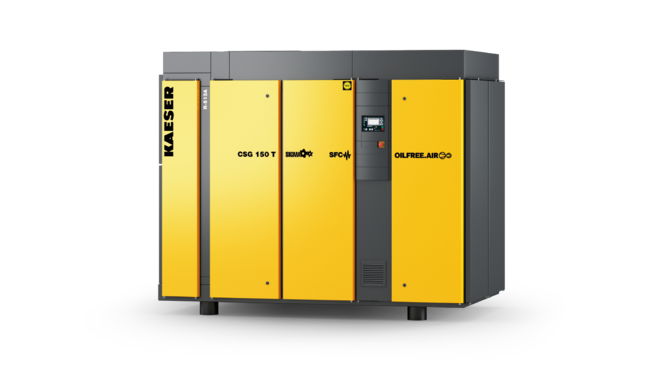

CSG oil-free compression rotary screw compressor with add-on dryer

Excellent accessibility

All refrigeration dryer components are perfectly accessible via the service door on the front of the unit. Dryer service and maintenance work is therefore a breeze.

View inside the integrated rotary dryer

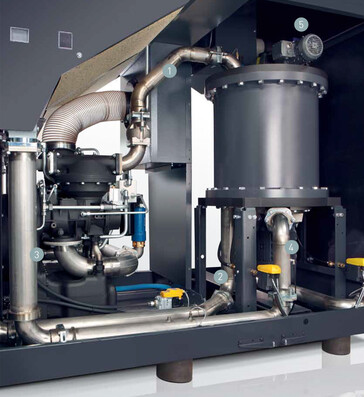

i.HOC rotation dryer installation diagram
  1. Regeneration air inlet
  2. Regeneration air outlet
  3. Condensate separation
  4. Radial fan inlet
  5. i.HOC outlet
i.HOC in detail

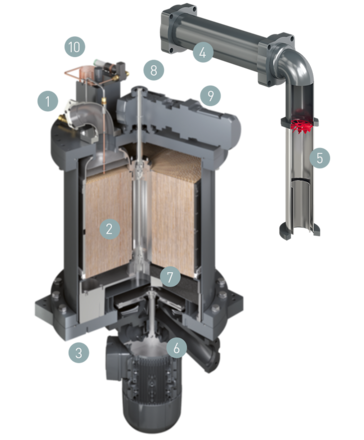

i.HOC – Cross-section and components
  1. Regeneration air inlet
  2. Drum (silica gel desiccant)
  3. Regeneration air outlet
  4. Heat exchanger stage 2
  5. External condensate separator
  6. Radial fan
  7. Demister (droplet separator)
  8. Rotation dryer outlet
  9. Drum motor
  10. Pressure dew point sensor (optional)
Technical specifications CSG W

Standard version

ModelCSG 60 W CSG 75 W CSG 95 W
Working pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 6.99 5.79 4.93 8.41 7.3 6.31 10.08 8.96 7.67
Max. positive pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Nominal motor output kW 37 45 55
Dimensions
W x D x H mm 		2,200 x 1,530 x 1,960 2,200 x 1,530 x 1,960 2,200 x 1,530 x 1,960
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 65 66 67
Weight kg 2,500 2,550 2,550

ModelCSG 125 W CSG 150 W
Working pressure bar 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 13.55 12.45 11.5 15.3 14.73 13.64
Max. positive pressure bar 6 8.6 11 6 8.6 11
Nominal motor output kW 75 90
Dimensions
W x D x H mm 		2,200 x 1,530 x 1,960 2,200 x 1,530 x 1,960
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 68 69
Weight kg 2,550 2,800

SFC version

ModelCSG 75 SFC W CSG 95 SFC W CSG 125 SFC W
Working pressure bar 6 8.6 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 4.24 - 8.56 4.22 - 7.28 4.94 - 9.96 4.93 - 9.03 4.93 - 8.15 5.43 - 13.68 5.42 - 12.26 5.15 - 10.92
Max. positive pressure bar 8.6 8.6 11 8.6 11
Nominal motor output kW 55 55 75 75
Dimensions
W x D x H mm 		2,200 x 1,530 x 1,960 2,200 x 1,530 x 1,960 2,200 x 1,530 x 1,960
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 67 68 69
Weight kg 2,500 2,500 2,550 2,550

ModelCSG 150 SFC W
Working pressure bar 6 8.6 11
Flow rate complete system at working pressure m³/min 5.44 - 16.4 5.42 - 14.82 5.41 - 13.6
Max. positive pressure bar 6 11
Nominal motor output kW 90
Dimensions
W x D x H mm 		2,200 x 1,530 x 1,960
Compressed air connectionDN65 PN16 DIN
Sound pressure level dB(A) 70
Weight kg 2,600

RD version

ModelCSG 60 i.HOC W CSG 75 i.HOC W CSG 95 i.HOC W
Working pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 6.99 5.79 4.93 8.41 7.3 6.31 10.08 8.96 7.67
Max. positive pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Nominal motor output kW 37 45 55
Pressure dew point °C - - -
Dimensions
W x D x H mm 		2,900 x 1,530 x 1,960 2,900 x 1,530 x 1,960 2,900 x 1,530 x 1,960
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 65 66 67
Weight kg 3,200 3,250 3,250

ModelCSG 125 i.HOC W CSG 150 i.HOC W
Working pressure bar 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 13.55 12.45 11.5 15.3 14.73 13.64
Max. positive pressure bar 6 8.6 11 6 8.6 11
Nominal motor output kW 75 90
Pressure dew point °C - -
Dimensions
W x D x H mm 		2,900 x 1,530 x 1,960 2,900 x 1,530 x 1,960
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 68 69
Weight kg 3,250 3,500

RD SFC version

ModelCSG 75 i.HOC SFC W CSG 95 i.HOC SFC W CSG 125 i.HOC SFC W
Working pressure bar 6 8.6 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 4.24 - 8.58 4.22 - 7.28 4.94 - 9.96 4.93 - 9.03 4.93 - 8.15 5.43 - 13.69 5.42 - 12.26 5.15 - 10.92
Max. positive pressure bar 8.6 8.6 11 8.6 11
Nominal motor output kW 55 55 75 75
Pressure dew point °C - - -
Dimensions
W x D x H mm 		2,900 x 1,530 x 1,960 2,900 x 1,530 x 1,960 2,900 x 1,530 x 1,960
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 67 68 69
Weight kg 3,200 3,200 3,250 3,250

ModelCSG 150 i.HOC SFC W
Working pressure bar 6 8.6 11
Flow rate complete system at working pressure m³/min 5.44 - 16.41 5.42 - 14.84 5.41 - 13.6
Max. positive pressure bar 6 11
Nominal motor output kW 90
Pressure dew point °C -
Dimensions
W x D x H mm 		2,900 x 1,530 x 1,960
Compressed air connectionDN65 PN16 DIN
Sound pressure level dB(A) 70
Weight kg 3,300

Add-on refrigeration dryer

ModelABT 130 ABT 150
Power consumption kW 1.38 1.35
Pressure dew point °C 3 3
RefrigerantR-513A R-513A
Global warming potential631 631
Refrigerant volume kg 1.5 1.1
Refrigerant mass as CO2 equivalent t 0.9 0.69
Hermetic refrigeration circuit- -

Technical specifications CSG A

Standard version

ModelCSG 60 A CSG 75 A CSG 95 A
Working pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 6.81 5.6 4.72 8.24 7.11 6.11 9.91 8.78 7.47
Max. positive pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Nominal motor output kW 37 45 55
Dimensions
W x D x H mm 		2,200 x 1,530 x 2,125 2,200 x 1,530 x 2,125 2,200 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 69 69 70
Weight kg 2,500 2,550 2,550

ModelCSG 125 A CSG 150 A
Working pressure bar 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 13.36 12.27 11.32 15.1 14.53 13.45
Max. positive pressure bar 6 8.6 11 6 8.6 11
Nominal motor output kW 75 90
Dimensions
W x D x H mm 		2,200 x 1,530 x 2,125 2,200 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 71 72
Weight kg 2,550 2,800

T version

ModelCSG 60 T A CSG 75 T A CSG 95 T A
Working pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 6.8 5.59 4.71 8.22 7.1 6.1 9.88 8.77 7.46
Max. positive pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Nominal motor output kW 37 45 55
Pressure dew point °C 3 3 3
Refrigeration dryerABT 150 ABT 150 ABT 150
Dimensions
W x D x H mm 		2,580 x 1,530 x 2,125 2,580 x 1,530 x 2,125 2,580 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 69 69 70
Weight kg 2,700 2,750 2,750

ModelCSG 125 T A CSG 150 T A
Working pressure bar 6 8.6 11 8.6 11
Flow rate complete system at working pressure m³/min 13.33 12.24 11.3 14.51 13.43
Max. positive pressure bar 6 8.6 11 8.6 11
Nominal motor output kW 75 90
Pressure dew point °C 3 3
Refrigeration dryerABT 150 ABT 150
Dimensions
W x D x H mm 		2,580 x 1,530 x 2,125 2,580 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 71 72
Weight kg 2,750 3,000

SFC version

ModelCSG 75 SFC A CSG 95 SFC A CSG 125 SFC A
Working pressure bar 6 8.6 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 4.04 - 8.27 4.02 - 6.98 4.75 - 9.79 4.73 - 8.71 4.71 - 7.82 5.25 - 13.32 5.22 - 11.9 4.93 - 10.58
Max. positive pressure bar 8.6 8.6 11 8.6 11
Nominal motor output kW 55 55 75 75
Dimensions
W x D x H mm 		2,200 x 1,530 x 2,125 2,200 x 1,530 x 2,125 2,200 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 70 71 72
Weight kg 2,500 2,500 2,550 2,550

ModelCSG 150 SFC A
Working pressure bar 6 8.6 11
Flow rate complete system at working pressure m³/min 5.25 - 16.04 5.22 - 14.47 5.2 - 13.25
Max. positive pressure bar 6 11
Nominal motor output kW 90
Dimensions
W x D x H mm 		2,200 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN
Sound pressure level dB(A) 73
Weight kg 2,600

T-SFC version

ModelCSG 75 T SFC A CSG 95 T SFC A CSG 125 T SFC A
Working pressure bar 6 8.6 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 4.04 - 8.22 4.01 - 6.96 4.74 - 9.77 4.72 - 8.68 4.71 - 7.79 5.24 - 13.2 5.22 - 11.84 4.93 - 10.54
Max. positive pressure bar 8.6 8.6 11 8.6 11
Nominal motor output kW 55 55 75 75
Pressure dew point °C 3 3 3
Refrigeration dryerABT 150 ABT 150 ABT 150
Dimensions
W x D x H mm 		2,580 x 1,530 x 2,125 2,580 x 1,530 x 2,125 2,580 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 70 71 72
Weight kg 2,700 2,700 2,750 2,750

ModelCSG 150 T SFC A
Working pressure bar 8.6 11
Flow rate complete system at working pressure m³/min 5.22 - 14.37 5.2 - 13.19
Max. positive pressure bar 11
Nominal motor output kW 90
Pressure dew point °C 3
Refrigeration dryerABT 150
Dimensions
W x D x H mm 		2,580 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN
Sound pressure level dB(A) 73
Weight kg 2,800

RD version

ModelCSG 60 i.HOC A CSG 75 i.HOC A CSG 95 i.HOC A
Working pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 6.81 5.6 4.72 8.24 7.11 6.11 9.91 8.78 7.47
Max. positive pressure bar 6 8.6 11 6 8.6 11 6 8.6 11
Nominal motor output kW 37 45 55
Pressure dew point °C - - -
Dimensions
W x D x H mm 		2,900 x 1,530 x 2,125 2,900 x 1,530 x 2,125 2,900 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 69 69 70
Weight kg 3,200 3,250 3,250

ModelCSG 125 i.HOC A CSG 150 i.HOC A
Working pressure bar 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 13.36 12.27 11.32 15.1 14.53 13.45
Max. positive pressure bar 6 8.6 11 6 8.6 11
Nominal motor output kW 75 90
Pressure dew point °C - -
Dimensions
W x D x H mm 		2,900 x 1,530 x 2,125 2,900 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 71 72
Weight kg 3,250 3,500

RD SFC version

ModelCSG 75 i.HOC SFC A CSG 95 i.HOC SFC A CSG 125 i.HOC SFC A
Working pressure bar 6 8.6 6 8.6 11 6 8.6 11
Flow rate complete system at working pressure m³/min 4.04 - 8.29 4.02 - 6.99 4.75 - 9.79 4.73 - 8.71 4.71 - 7.82 5.25 - 13.32 5.22 - 11.9 4.93 - 10.58
Max. positive pressure bar 8.6 8.6 11 8.6 11
Nominal motor output kW 55 55 75 75
Pressure dew point °C - - -
Dimensions
W x D x H mm 		2,900 x 1,530 x 2,125 2,900 x 1,530 x 2,125 2,900 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN DN65 PN16 DIN DN65 PN16 DIN
Sound pressure level dB(A) 70 71 72
Weight kg 3,200 3,200 3,250 3,250

ModelCSG 150 i.HOC SFC A
Working pressure bar 6 8.6 11
Flow rate complete system at working pressure m³/min 5.25 - 16.04 5.22 - 14.5 5.2 - 13.25
Max. positive pressure bar 6 11
Nominal motor output kW 90
Pressure dew point °C -
Dimensions
W x D x H mm 		2,900 x 1,530 x 2,125
Compressed air connectionDN65 PN16 DIN
Sound pressure level dB(A) 73
Weight kg 3,300

Add-on refrigeration dryer

ModelABT 130 ABT 150
Power consumption kW 1.38 1.35
Pressure dew point °C 3 3
RefrigerantR-513A R-513A
Global warming potential631 631
Refrigerant volume kg 1.5 1.1
Refrigerant mass as CO2 equivalent t 0.9 0.69
Hermetic refrigeration circuit- -

Technical specifications DSG-2 W

Standard version

ModelDSG 140-2 W DSG 180-2 W DSG 220-2 W
Working pressure bar 8 10 4 6 8 10 4 6 8 10
Flow rate complete system at working pressure m³/min 13.18 13.12 21.7 19.2 18.4 16.1 26.15 23 21.6 19.1
Max. positive pressure bar 8 10 4 6 8 10 4 6 8 10
Nominal motor output kW 90 110 132
Dimensions
W x D x H mm 		3,435 x 1,750 x 2,060 3,435 x 1,750 x 2,060 3,435 x 1,750 x 2,060
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 69 70 71
Weight kg 3,100 3,250 3,350

ModelDSG 260-2 W DSG 290-2 W
Working pressure bar 4 6 8 10 4 6 8 10
Flow rate complete system at working pressure m³/min 28.61 26.1 26 22.9 28.6 28.55 28.5 26
Max. positive pressure bar 4 8 10 8 10
Nominal motor output kW 160 200
Dimensions
W x D x H mm 		3,435 x 1,750 x 2,060 3,435 x 1,750 x 2,060
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 74 75
Weight kg 3,500 3,700

SFC version

ModelDSG 180-2 SFC W DSG 220-2 SFC W DSG 260-2 SFC W
Working pressure bar 4 6 8 10 4 6 8 10 4 6 8 10
Flow rate complete system at working pressure m³/min 8.58 - 22.52 9.46 - 20.79 8.51 - 18.56 9.54 - 16.43 7.84 - 22.51 8.68 - 22.45 9.51 - 21.8 9.95 - 19.5 8.59 - 27.71 9.36 - 27.66 9.62 - 25.44 10.3 - 23.3
Max. positive pressure bar 6 10 8.5 10 7 10
Nominal motor output kW 110 132 160
Dimensions
W x D x H mm 		3,435 x 1,750 x 2,060 3,435 x 1,750 x 2,060 3,435 x 1,750 x 2,060
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 71 72 75
Weight kg 3,850 3,950 4,100

ModelDSG 290-2 SFC W
Working pressure bar 4 6 8 10
Flow rate complete system at working pressure m³/min 9.07 - 30.09 10.27 - 30.05 11.47 - 30 12.33 - 28
Max. positive pressure bar 8.5 10
Nominal motor output kW 200
Dimensions
W x D x H mm 		3,435 x 1,750 x 2,060
Compressed air connectionDN80 PN16 DIN
Sound pressure level dB(A) 76
Weight kg 4,300

RD version

ModelDSG 140-2 i.HOC W DSG 180-2 i.HOC W DSG 220-2 i.HOC W
Working pressure bar 8 10 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 13.18 13.12 19.2 18.4 16.1 23 21.6 19.1
Max. positive pressure bar 8 10 6 8 10 6 8 10
Nominal motor output kW 90 110 132
Pressure dew point °C -32 -36 -24 -33 -36 -24 -33 -36
Dimensions
W x D x H mm 		4,270 x 1,750 x 2,060 4,270 x 1,750 x 2,060 4,270 x 1,750 x 2,060
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 69 70 71
Weight kg 4,200 4,350 4,450

ModelDSG 260-2 i.HOC W DSG 290-2 i.HOC W
Working pressure bar 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 26.1 26 22.9 28.55 28.5 26
Max. positive pressure bar 8 10 8 10
Nominal motor output kW 160 200
Pressure dew point °C -25 -33 -36 -24 -33 -36
Dimensions
W x D x H mm 		4,270 x 1,750 x 2,060 4,270 x 1,750 x 2,060
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 74 75
Weight kg 4,600 4,800

RD SFC version

ModelDSG 180-2 i.HOC SFC W DSG 220-2 i.HOC SFC W DSG 260-2 i.HOC SFC W
Working pressure bar 6 8 10 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 9.46 - 20.79 8.51 - 18.56 9.54 - 16.43 8.68 - 22.45 9.51 - 21.8 9.95 - 19.5 9.36 - 27.66 9.62 - 25.44 10.3 - 23.3
Max. positive pressure bar 6 10 8.5 10 7 10
Nominal motor output kW 110 132 160
Pressure dew point °C -24 -32 -36 -25 -33 -36 -25 -33 -36
Dimensions
W x D x H mm 		4,270 x 1,750 x 2,060 4,270 x 1,750 x 2,060 4,270 x 1,750 x 2,060
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 71 72 75
Weight kg 4,950 5,050 5,200

ModelDSG 290-2 i.HOC SFC W
Working pressure bar 6 8 10
Flow rate complete system at working pressure m³/min 10.27 - 30.05 11.47 - 30 12.33 - 28
Max. positive pressure bar 8.5 10
Nominal motor output kW 200
Pressure dew point °C -25 -33 -36
Dimensions
W x D x H mm 		4,270 x 1,750 x 2,060
Compressed air connectionDN80 PN16 DIN
Sound pressure level dB(A) 76
Weight kg 5,400

Technical specifications DSG-2 A

Standard version

ModelDSG 140-2 A DSG 180-2 A DSG 220-2 A
Working pressure bar 8 10 4 6 8 10 4 6 8 10
Flow rate complete system at working pressure m³/min 13.18 13.12 21.7 19.2 18.4 16.1 26.15 23 21.6 19.1
Max. positive pressure bar 8 10 4 6 8 10 4 6 8 10
Nominal motor output kW 90 110 132
Dimensions
W x D x H mm 		3,435 x 1,750 x 2,385 3,435 x 1,750 x 2,385 3,435 x 1,750 x 2,385
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 77 78 78
Weight kg 3,400 3,550 3,650

ModelDSG 260-2 A DSG 290-2 A
Working pressure bar 4 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 28.61 26.1 26 22.9 28.55 28.5 26
Max. positive pressure bar 4 8 10 8 10
Nominal motor output kW 160 200
Dimensions
W x D x H mm 		3,435 x 1,750 x 2,385 3,435 x 1,750 x 2,385
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 79 81
Weight kg 3,800 4,000

SFC version

ModelDSG 180-2 SFC A DSG 220-2 SFC A DSG 260-2 SFC A
Working pressure bar 4 6 8 10 4 6 8 10 4 6 8 10
Flow rate complete system at working pressure m³/min 8.58 - 22.52 9.46 - 20.79 8.51 - 18.56 9.54 - 16.43 7.84 - 22.51 8.68 - 22.45 9.51 - 21.8 9.95 - 19.5 8.59 - 27.71 9.36 - 27.66 9.62 - 25.44 10.3 - 23.3
Max. positive pressure bar 6 10 8.5 10 7 10
Nominal motor output kW 110 132 160
Dimensions
W x D x H mm 		3,435 x 1,750 x 2,385 3,435 x 1,750 x 2,385 3,435 x 1,750 x 2,385
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 79 79 80
Weight kg 4,150 4,250 4,400

ModelDSG 290-2 SFC A
Working pressure bar 4 6 8 10
Flow rate complete system at working pressure m³/min 9.07 - 30.09 10.27 - 30.05 11.47 - 30 12.33 - 28
Max. positive pressure bar 8.5 10
Nominal motor output kW 200
Dimensions
W x D x H mm 		3,435 x 1,750 x 2,385
Compressed air connectionDN80 PN16 DIN
Sound pressure level dB(A) 82
Weight kg 4,600

RD version

ModelDSG 140-2 i.HOC A DSG 180-2 i.HOC A DSG 220-2 i.HOC A
Working pressure bar 8 10 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 13.18 13.12 19.2 18.4 16.1 23 21.6 19.1
Max. positive pressure bar 8 10 6 8 10 6 8 10
Nominal motor output kW 90 110 132
Pressure dew point °C -34 -36 -26 -33 -36 -26 -33 -35
Dimensions
W x D x H mm 		4,270 x 1,750 x 2,385 4,270 x 1,750 x 2,385 4,270 x 1,750 x 2,385
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 77 78 78
Weight kg 4,500 4,650 4,750

ModelDSG 260-2 i.HOC A DSG 290-2 i.HOC A
Working pressure bar 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 26.1 26 22.9 28.55 28.5 26
Max. positive pressure bar 8 10 8 10
Nominal motor output kW 160 200
Pressure dew point °C -25 -32 -34 -24 -31 -33
Dimensions
W x D x H mm 		4,270 x 1,750 x 2,385 4,270 x 1,750 x 2,385
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 79 81
Weight kg 4,900 5,100

RD SFC version

ModelDSG 180-2 i.HOC SFC A DSG 220-2 i.HOC SFC A DSG 260-2 i.HOC SFC A
Working pressure bar 6 8 10 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 9.46 - 20.79 8.51 - 18.56 9.54 - 16.43 8.68 - 22.45 9.51 - 21.8 9.95 - 19.5 9.36 - 27.66 9.62 - 25.44 10.3 - 23.3
Max. positive pressure bar 6 10 8.5 10 7 10
Nominal motor output kW 110 132 160
Pressure dew point °C -26 -33 -36 -26 -32 -35 -25 -31 -34
Dimensions
W x D x H mm 		4,270 x 1,750 x 2,385 4,270 x 1,750 x 2,385 4,270 x 1,750 x 2,385
Compressed air connectionDN80 PN16 DIN DN80 PN16 DIN DN80 PN16 DIN
Sound pressure level dB(A) 79 79 80
Weight kg 5,250 5,350 5,500

ModelDSG 290-2 i.HOC SFC A
Working pressure bar 6 8 10
Flow rate complete system at working pressure m³/min 10.27 - 30.05 11.47 - 30 12.33 - 28
Max. positive pressure bar 8.5 10
Nominal motor output kW 200
Pressure dew point °C -24 -30 -33
Dimensions
W x D x H mm 		4,270 x 1,750 x 2,385
Compressed air connectionDN80 PN16 DIN
Sound pressure level dB(A) 82
Weight kg 5,700

Technical specifications FSG-2 A

Standard version

ModelFSG 300-2 A FSG 350-2 A FSG 420-2 A
Working pressure bar 4 6 8 4 6 8 10 4 6 8 10
Flow rate complete system at working pressure m³/min 35.12 29.4 29.3 42.15 37.3 34.9 29.2 50.14 45.7 42 37.1
Max. positive pressure bar 4 8 4 6 8 10 4 6 8 10
Nominal motor output kW 160 200 250
Dimensions
W x D x H mm 		3,860 x 2,075 x 2,730 3,860 x 2,075 x 2,730 3,860 x 2,075 x 2,730
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 78 78 80
Weight kg 5,550 5,750 5,950

ModelFSG 450-2 A FSG 500-2 A
Working pressure bar 6 8 10 8 10
Flow rate complete system at working pressure m³/min 50.1 45.6 41.9 50 45.6
Max. positive pressure bar 6 8 10 8 10
Nominal motor output kW 315 315
Dimensions
W x D x H mm 		3,860 x 2,075 x 2,730 3,860 x 2,075 x 2,730
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 81 82
Weight kg 6,250 6,250

SFC version

ModelFSG 420-2 SFC A FSG 500-2 SFC A FSG 520-2 SFC A
Working pressure bar 4 6 8 10 4 6 8 10 4 6 8 10
Flow rate complete system at working pressure m³/min 12.95 - 45.84 14.79 - 42.18 16.63 - 38.52 18.48 - 34.85 15.48 - 50.77 16.94 - 48.66 18.41 - 44.93 19.88 - 41.21 15.48 - 50.77 16.94 - 50.7 18.4 - 50.63 19.88 - 48.59
Max. positive pressure bar 10 10 10
Nominal motor output kW 250 315 355
Dimensions
W x D x H mm 		3,860 x 2,075 x 2,730 3,860 x 2,075 x 2,730 3,860 x 2,075 x 2,730
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 81 83 84
Weight kg 6,550 7,000 7,600

RD version

ModelFSG 300-2 i.HOC A FSG 350-2 i.HOC A FSG 420-2 i.HOC A
Working pressure bar 6 8 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 29.4 29.3 37.3 34.9 29.2 45.7 42 37.1
Max. positive pressure bar 8 6 8 10 6 8 10
Nominal motor output kW 160 200 250
Pressure dew point °C -22 -31 -20 -29 -34 -19 -28 -32
Dimensions
W x D x H mm 		4,630 x 2,075 x 2,730 4,630 x 2,075 x 2,730 4,630 x 2,075 x 2,730
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 78 78 80
Weight kg 6,750 6,950 7,150

ModelFSG 450-2 i.HOC A FSG 500-2 i.HOC A
Working pressure bar 8 10 8 10
Flow rate complete system at working pressure m³/min 45.6 41.9 50 45.6
Max. positive pressure bar 8 10 8 10
Nominal motor output kW 315 315
Pressure dew point °C -27 -31 -26 -30
Dimensions
W x D x H mm 		4,630 x 2,075 x 2,730 4,630 x 2,075 x 2,730
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 81 82
Weight kg 7,450 7,450

RD SFC version

ModelFSG 420-2 i.HOC SFC A FSG 500-2 i.HOC SFC A FSG 520-2 i.HOC SFC A
Working pressure bar 6 8 10 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 14.79 - 42.18 16.63 - 38.52 18.48 - 34.85 16.94 - 48.66 18.41 - 44.93 19.88 - 41.21 16.94 - 50.7 18.4 - 50.63 19.88 - 48.59
Max. positive pressure bar 10 10 10
Nominal motor output kW 250 315 355
Pressure dew point °C -22 -28 -32 -18 -26 -31 -21 -26 -29
Dimensions
W x D x H mm 		4,630 x 2,075 x 2,730 4,630 x 2,075 x 2,730 4,630 x 2,075 x 2,730
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 81 83 84
Weight kg 7,750 8,200 8,800

Technical specifications FSG-2 W

Standard version

ModelFSG 300-2 W FSG 350-2 W FSG 420-2 W
Working pressure bar 4 6 8 4 6 8 10 4 6 8 10
Flow rate complete system at working pressure m³/min 35.12 29.4 29.3 42.15 37.3 34.9 29.2 50.14 45.7 42 37.1
Max. positive pressure bar 4 8 4 6 8 10 4 6 8 10
Nominal motor output kW 160 200 250
Dimensions
W x D x H mm 		3,650 x 2,075 x 2,220 3,650 x 2,075 x 2,220 3,650 x 2,075 x 2,220
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 74 75 75
Weight kg 5,250 5,450 5,650

ModelFSG 450-2 W FSG 500-2 W FSG 520-2 W
Working pressure bar 6 8 10 8 10 10
Flow rate complete system at working pressure m³/min 50.1 45.6 41.9 50 45.6 50
Max. positive pressure bar 6 8 10 8 10 10
Nominal motor output kW 315 315 355
Dimensions
W x D x H mm 		3,650 x 2,075 x 2,220 3,650 x 2,075 x 2,220 3,650 x 2,075 x 2,220
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 75 76 77
Weight kg 5,950 5,950 6,550

SFC version

ModelFSG 420-2 SFC W FSG 500-2 SFC W FSG 520-2 SFC W
Working pressure bar 4 6 8 10 4 6 8 10 4 6 8 10
Flow rate complete system at working pressure m³/min 12.95 - 48.53 14.79 - 44.56 16.63 - 40.57 18.48 - 36.54 15.48 - 50.77 16.94 - 50.7 18.41 - 47.53 19.88 - 43.57 15.48 - 50.77 16.94 - 50.7 18.41 - 50.64 19.88 - 50.57
Max. positive pressure bar 10 10 10
Nominal motor output kW 250 315 355
Dimensions
W x D x H mm 		3,650 x 2,075 x 2,220 3,650 x 2,075 x 2,220 3,650 x 2,075 x 2,220
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 76 77 78
Weight kg 6,250 6,700 7,300

RD version

ModelFSG 300-2 i.HOC W FSG 350-2 i.HOC W FSG 420-2 i.HOC W
Working pressure bar 6 8 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 29.4 29.3 37.3 34.9 29.2 45.7 42 37.1
Max. positive pressure bar 8 6 8 10 6 8 10
Nominal motor output kW 160 200 250
Pressure dew point °C -22 -30 -22 -31 -35 -22 -31 -35
Dimensions
W x D x H mm 		4,475 x 2,075 x 2,220 4,475 x 2,075 x 2,220 4,475 x 2,075 x 2,220
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 74 75 75
Weight kg 6,400 6,600 6,800

ModelFSG 450-2 i.HOC W FSG 500-2 i.HOC W FSG 520-2 i.HOC W
Working pressure bar 6 8 10 8 10 10
Flow rate complete system at working pressure m³/min 50.1 45.6 41.9 50 45.6 50
Max. positive pressure bar 6 8 10 8 10 10
Nominal motor output kW 315 315 355
Pressure dew point °C -22 -31 -35 -31 -35 -35
Dimensions
W x D x H mm 		4,475 x 2,075 x 2,220 4,475 x 2,075 x 2,220 4,475 x 2,075 x 2,220
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 75 76 77
Weight kg 7,100 7,100 7,700

RD SFC version

ModelFSG 420-2 i.HOC SFC W FSG 500-2 i.HOC SFC W FSG 520-2 i.HOC SFC W
Working pressure bar 6 8 10 6 8 10 6 8 10
Flow rate complete system at working pressure m³/min 14.79 - 44.56 16.63 - 40.57 18.48 - 36.54 16.94 - 50.7 18.41 - 47.53 19.88 - 43.57 16.94 - 50.7 18.41 - 50.64 19.88 - 50.57
Max. positive pressure bar 10 10 10
Nominal motor output kW 250 315 355
Pressure dew point °C -25 -31 -35 -23 -30 -35 -23 -30 -35
Dimensions
W x D x H mm 		4,475 x 2,075 x 2,220 4,475 x 2,075 x 2,220 4,475 x 2,075 x 2,220
Compressed air connectionDN150 PN16 DIN DN150 PN16 DIN DN150 PN16 DIN
Sound pressure level dB(A) 76 77 78
Weight kg 7,400 7,850 8,450

Print page
