Diesel-driven compressors up to 48.1 m³/min
Compact, powerful and versatile – Performance is more than a promise with diesel-driven MOBILAIR portable compressors from KAESER. As true powerhouses of the MOBILAIR range, these oil-injected portable compressors combine exceptional performance with compact design.
These versatile machines can be perfectly adapted to meet the needs of the specific application thanks to a wide range of optional treatment components that always deliver the required compressed air quality. Furthermore, the generously-sized fuel tank ensures impressive construction site staying power. When full, the fuel tank has sufficient capacity to last an entire work shift. These versatile portable compressors are equipped as standard to deal with ambient temperatures ranging from -10 to +50°C. Machines are also optionally available for lower ambient temperatures.

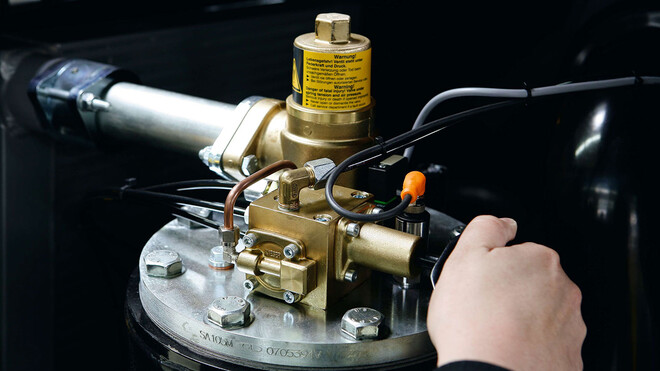

The MOBILAIR M135 is exceptionally flexible thanks to its dynamic ‘pV control’. One and the same system can deliver pressures between 5 and 14.5 bar. This makes them ideal for cable blowing and drilling, for blasting work and concrete processing, as well as for providing backup air in opencast mining and industrial applications.
Performance data:
- Flow rate up to 48.1 m³/min
- Working pressure up to 15.5 bar
Your benefits
- Perfect performance even in extreme temperatures:
These versatile portable compressors are equipped as standard to deal with ambient temperatures ranging from -10 to +50°C. Machines are also optionally available for lower ambient temperatures.
- Clean and oil-free compressed air:
Depending on the specific application, MOBILAIR portable compressors can also be equipped with microfilter combinations for technically oil-free compressed air, such as required for blasting applications as per German ZTV-ING regulations. This option delivers compressed air with an oil aerosol content of < 0.01 mg/m³, as per the requirements of ISO 8573-1.

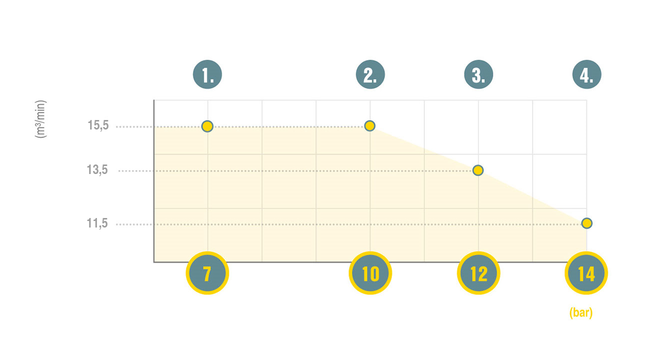

- pV control:
The advantages of ‘pV control’ truly shine when it comes to cable blowing: initially, large volumes of air at lower pressure are used to accelerate the cable. Once in progress, more pressure and lower delivery volume are then used for long sections.
Simple and intuitive system control
The SIGMA CONTROL SMART controller assures exceptionally intuitive operation, since the compressor can be operated with just three buttons. Furthermore, the monitoring system can automatically shut the compressor down if necessary, or report required maintenance. The control panel is protected by a durable metal cover flap.
